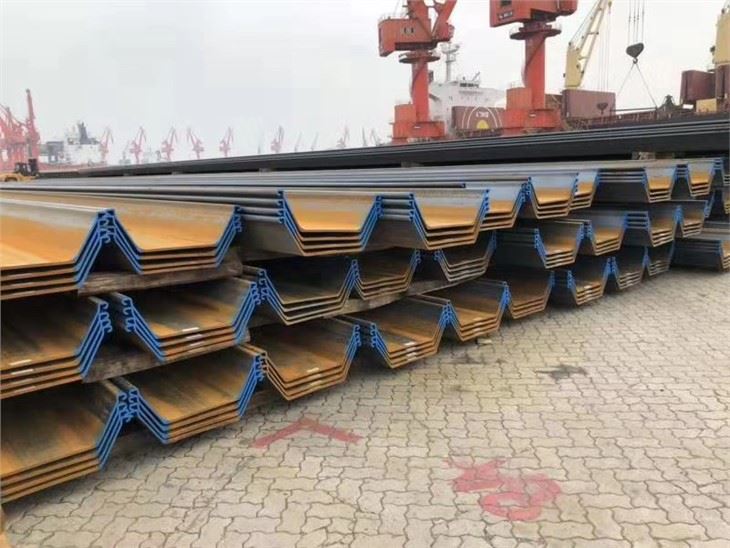

Different Types Of Sheet Piles

Product Model: JU400*100-JU750*225
Width:400-750mm
Height:100-225mm
Thickness:10.5-14.6mm

Send Inquiry

Description

U Type：
Product Model		JU400*100	JU400*125	JU400*170	JU600*180	JU600*205	JU600*210	JU600*226	JU750*225
W(mm)		400	400	400	600	600	600	600	750
H(mm)		100	125	125	170	180	205	210	225
T(mm)		10.5	13	15.5	13.4	10	18	19	14.6
Single Root	cm²	61.18	76.42	96.99	103.9	91.8	135.3	145	140.6
kg/m	48	60	76.1	81.6	72.1	106.2	114	110.4
Ix (cm4）	1240	2220	4670	5220	6434	8630	11280	10445
cm³	152	223	362	376	438	539	649	602
Plate Surface Per Meter	cm²	153	191	242.5	173.2	153	225.5	241.7	187.5
Kg/cm²	120.1	149.9	190.4	136	120.1	177	190	147.2
cm4	8740	16800	38600	32400	34645	56700	72320	56301
cm³	874	1340	2270	1800	1690	2700	3200	2502

different types of sheet piles2

Permanent Sheet Pile Basements

The use of sheet piles as the permanent sheet pile can be retaining walls for underground basement construction and can be utilized in underground car parks, pumping stations, basements, storage tanks, and many other applications where underground retaining structures are required.

Introduction of U-type steel sheet pile:

U-type steel sheet pile is another name for Larsen steel sheet pile. As a new type of building material, it can be used as a retaining wall for soil, water, and sand when building bridge cofferdams, laying large pipelines, and excavating temporary ditches. The Larsen steel sheet pile used as a cofferdam is not only green and environmentally friendly but also has quick construction, low cost, and good waterproof performance.

Advantage:

• Construction is much faster than for reinforced concrete walls.

• Permanent sheet piling is a narrow type of construction that can be installed close to the site's boundary, maximizing usable site space.

• Steel sheet piles can be used in any soil type.

• No excavation is required for wall foundations.
