Description
The term sheet piles refer to any retaining wall type that is installed into the ground by driving or pushing, rather than pouring or injection and is of relatively thin crosssection and low weight so that the weight of the wall does not assist in the wall’s stability.
JIS A 5528
U TYPE Pile Series
width active height plate thickness Unit weight
(mm) (mm) (mm) (kg/m)
PU400*100 (TYPE II) 400 100 10.5 120.1
PU400*125(TYPE III) 400 125 13 149.9
PU400*150 400 150 13.1 146
PU400*170 (TYPE IV) 400 170 15.5 190.4
PU400*200 400 200 24.3 210.1
PU500*210 500 210 11.5 155
PU500*225 500 225 27.6 240.2
PU500*130 500 130 10.3 103
PU600*180 600 180 13.4 136
PU600*210(TYPE IVW) 600 210 18 177

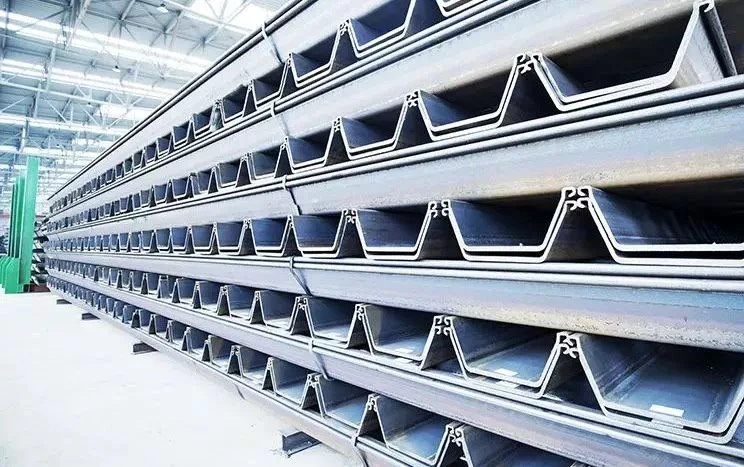

U sheet piles retain soil and water just like Z piles with one important difference: U piles have the interlock on the neutral axis. The placement of the lock in the centerline of the wall reduces the efficiency of the section and can cause a reduction of section properties because of shear transfer problems.
