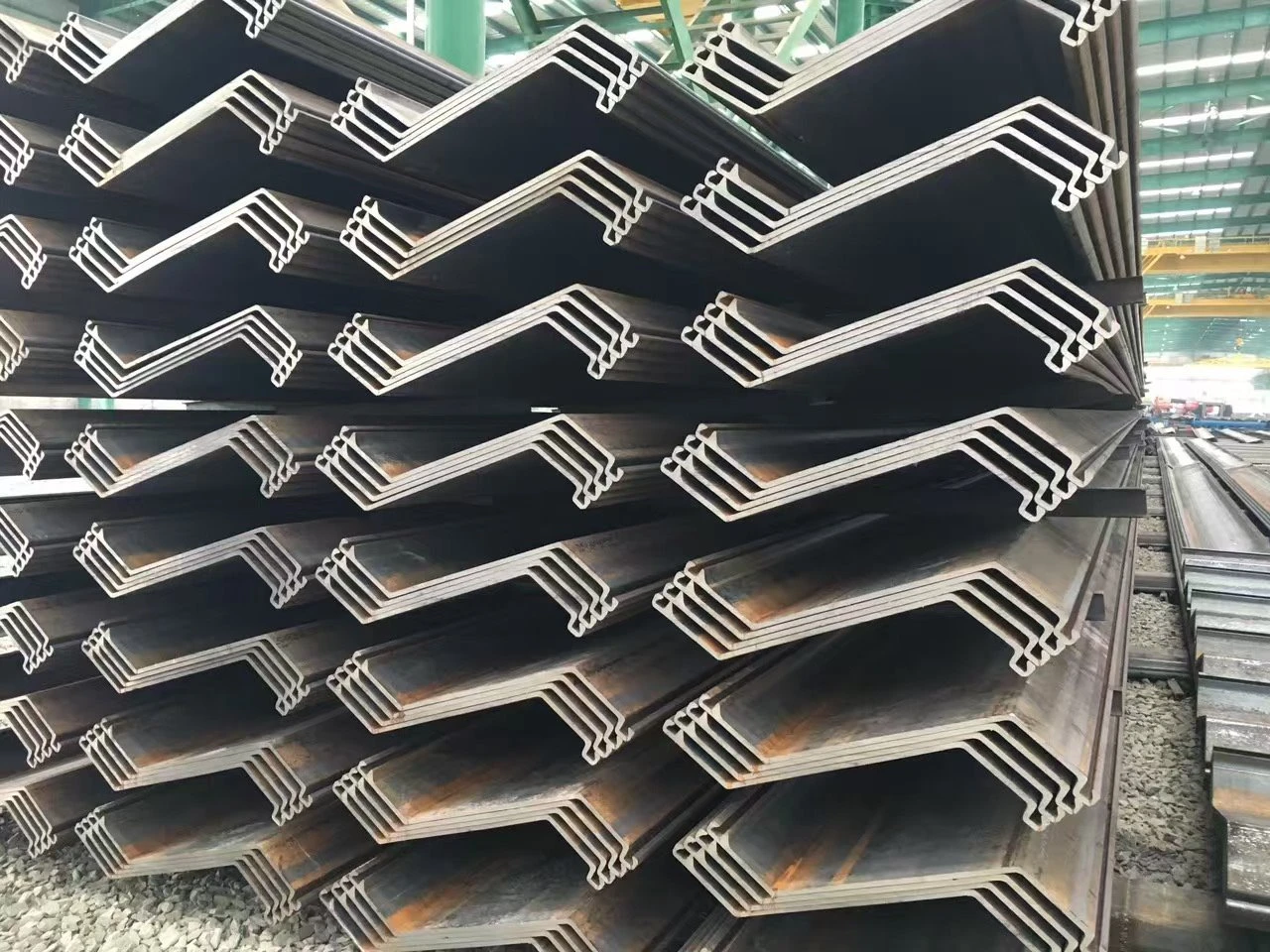

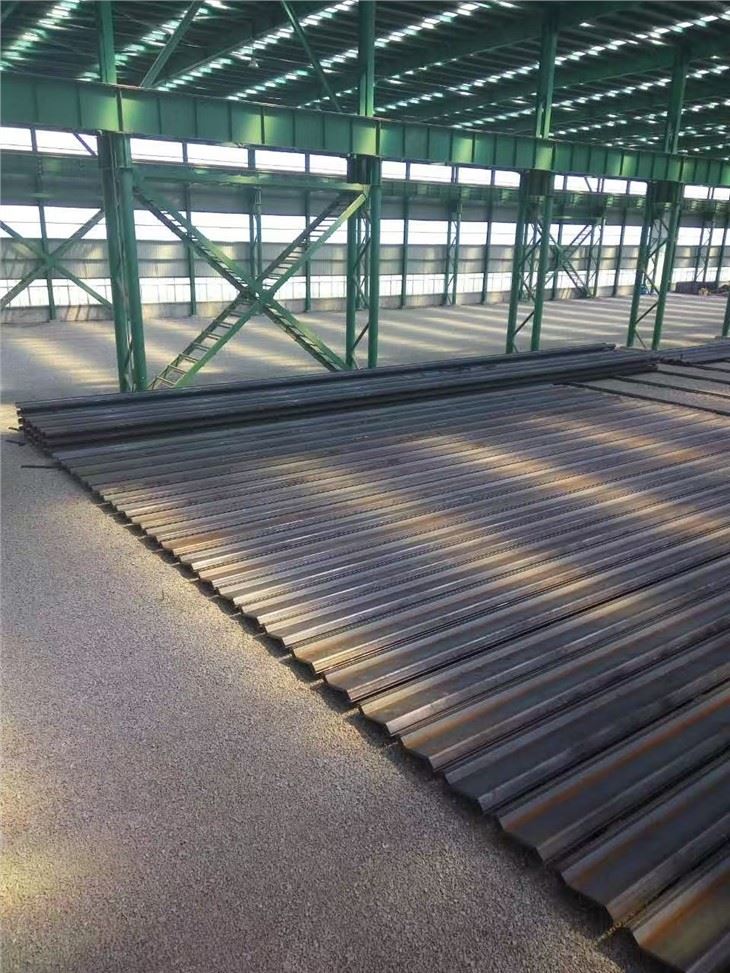

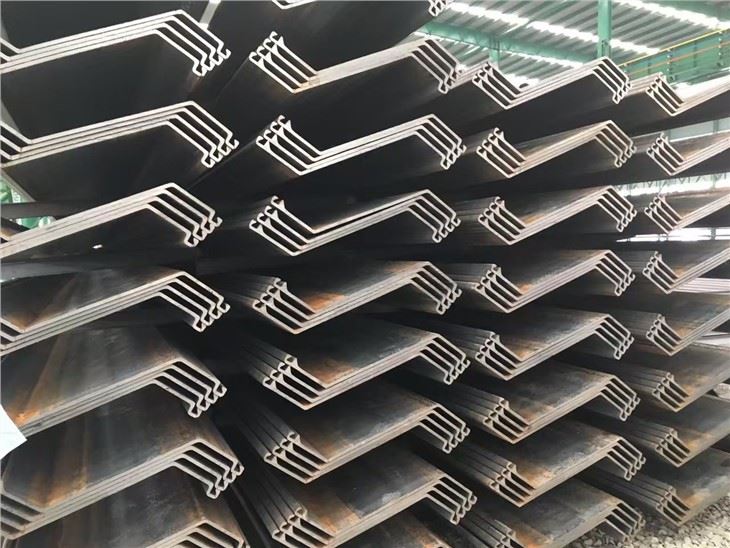

Z Type Sheet Pile

Z-shaped sheet piles are called Zs because the single piles are shaped roughly like a horizontally stretched Z. The interlocks are located as far away from the neutral axis as possible to ensure good shear transmission and increase the strength-to-weight ratio.

Z piles are the most common type of sheet pile and can be used in a wide variety of applications. Retaining walls, cofferdams, parking garages, environmental barrier walls, and bulkhead walls for ports are just a few of their varied uses.

EN10248 ASTM A328/A 328M

PZ TYPE Pile Series

width active height plate thickness

Unit

weight

(mm) (mm) (mm) (kg/m)

PZ 13-700 700 315 9.5 74

PZ 13-700-10/10 700 316 10 77.2

PZ 14-700 700 316 10.5 80.3

PZ 17-700 700 420 8.5 73.1

PZ 18-700 700 420 9 76.5

PZ 19-700 700 421 9.5 80

PZ 20-700 700 421 10 83.5

PZ 24-700 700 459 11.2 95.7

PZ 26-700 700 460 12.2 102.9

PZ 28-700 700 461 13.2 110

PZ 24-700N 700 459 12.5 89.7

PZ 26-700N 700 460 13.5 96.6

PZ 28-700N 700 461 14.5 104.1

PZ 36-700N 700 499 25 118.6

PZ 38-700N 700 500 16 126.4

PZ 40-700N 700 501 17 134.2

PZ 42-700N 700 499 18 142.1

PZ 44-700N 700 500 19 149.9

PZ 46-700N 700 501 17 157.7

PZ 12-770 770 344 8.5 72.6

PZ 13-770 770 344 9 76.1

PZ14-770 770 345 9.5 79.5

PZ14-770 770 345 10 82.9

PZ18 630 380 9.5 74.4

PZ18-10/10 630 381 10 77.8

PZ26 630 427 13 97.8

PZ46 580 481 18 132.6

PZ48 580 482 19 139.6

PZ50 580 483 20 146.7
