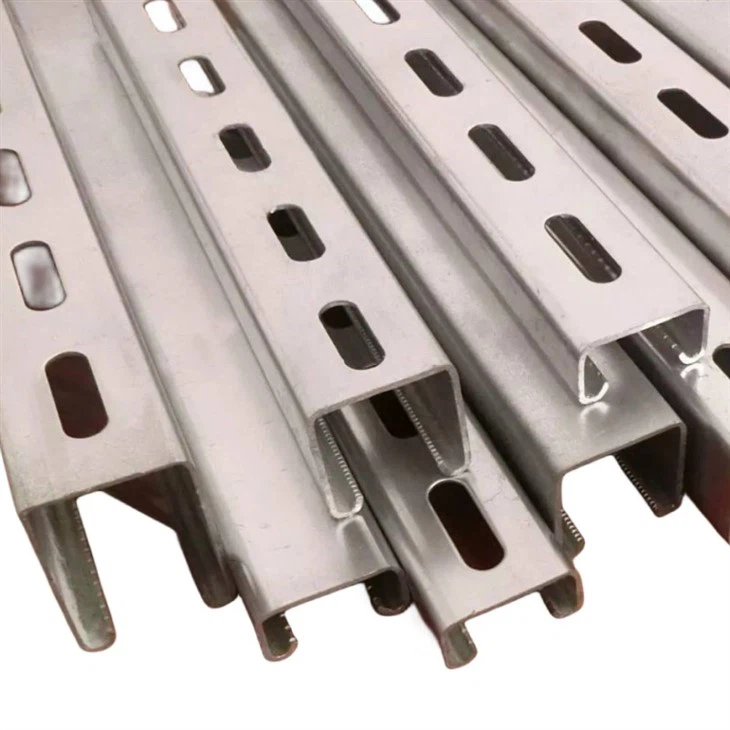

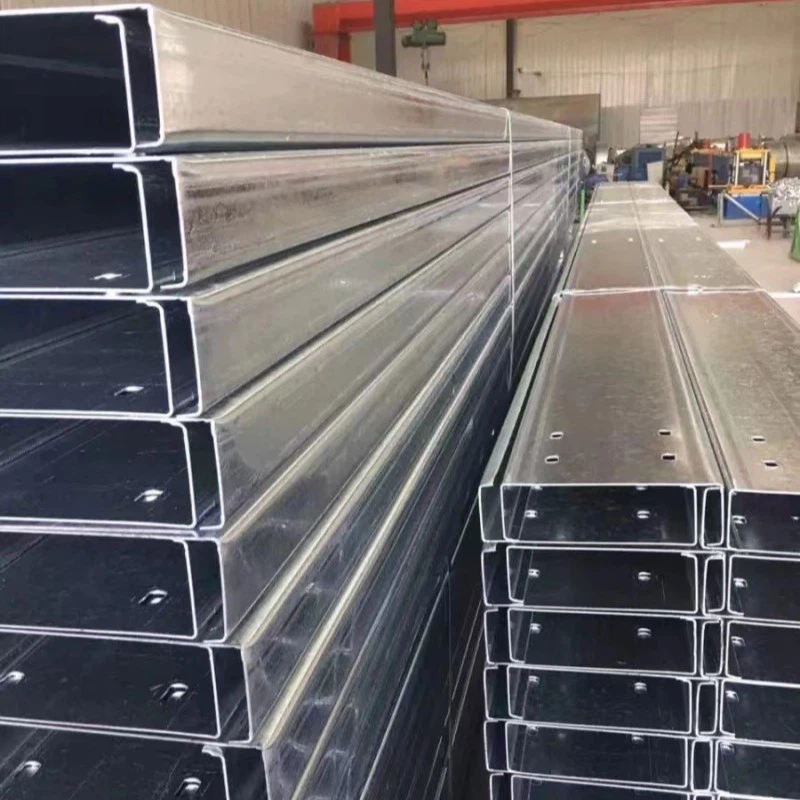

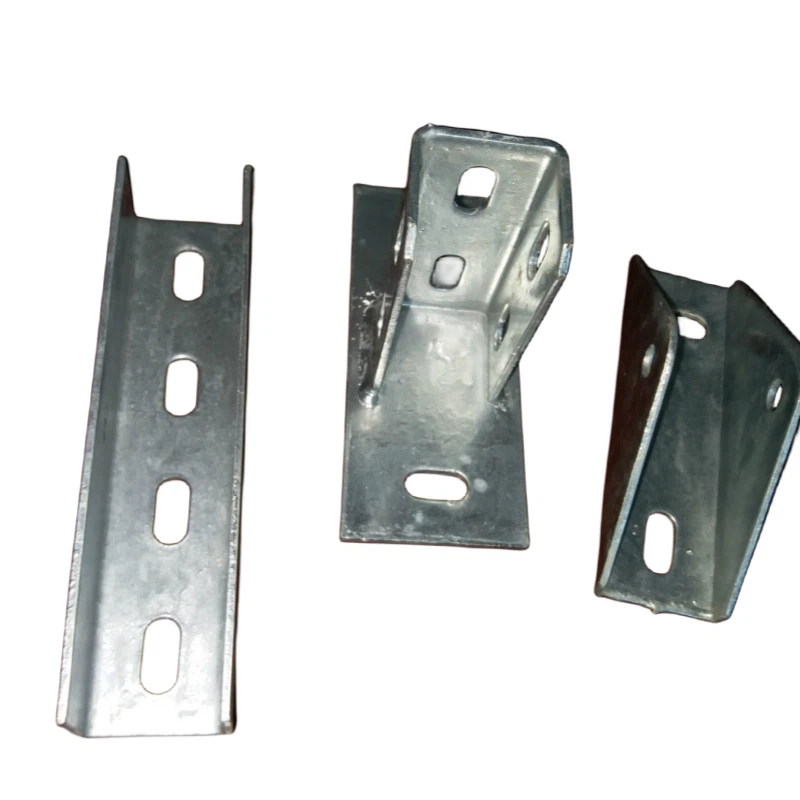

Solar PV Mounting Brackets

Product Details:

Solar PV mounting brackets parts analysis：

Photovoltaic brackets are an important part of solar photovoltaic power generation systems. They are mainly used to support solar cell components and adjust the direction and tilt angle of solar panels to ensure that the solar panels absorb solar energy to the greatest extent and convert it into electricity. In solar photovoltaic power generation systems, the quality of photovoltaic supports directly affects the efficiency and life of the photovoltaic power generation system.

Solar PV mounting brackets are usually made of steel and aluminum alloy materials, and their main components include base, bracket arms, bracket frames, end caps, connectors, etc. Together they form a complete photovoltaic support system. In practical applications, photovoltaic brackets also need to meet anti-corrosion, anti-rust, weather resistance, and other requirements.

The base is the supporting foundation of the photovoltaic bracket system and is generally installed on a fixed base or on the ground. The base materials are mostly concrete, steel, etc., which have good load-bearing and stability. As the scale of photovoltaic power generation systems increases, the design of the base becomes more and more complex. Considering the importance of the base to the stability and reliability of the system, relevant departments have imposed stricter regulations on the installation and quality of the base. To ensure that the photovoltaic mounting system can operate stably for a long time.

The bracket arms are the connecting components in the photovoltaic bracket system. Their length and number can be adjusted according to the specifications of the crystalline silicon wafer and the layout requirements of the solar panel. In practical applications, the bracket arm can fix the position of the solar panel or adjust the angle of the solar panel to improve the utilization rate of the solar panel. The bracket arm material is generally steel or aluminum, which has high strength and durability. Factors such as manufacturing costs and transportation costs must also be considered.

The bracket is the main supporting component of the photovoltaic bracket system and is used to support and fix solar panels. Brackets are generally made of steel or aluminum and have good load-bearing and corrosion resistance. During installation and use, the stiffness and stability of the bracket itself also need to be considered to ensure that the solar panel can operate smoothly for a long time.

Connectors are a key component of the photovoltaic mounting system, used to connect various components and adjust their relative positions. Connectors can be divided into various types such as bolts, washers, expansion bolts, etc. The specific type of connector to be selected needs to be selected based on the characteristics of the components and the design requirements of the system. The quality of the connectors has a great influence on the overall performance of the photovoltaic bracket system. Reliable quality connectors must be selected to ensure the stable operation of the system for a long time.

The end cap is the last component of the photovoltaic mounting system and is used to close the end of the mounting system. The end cap has three functions. The first is to provide a complete appearance for the photovoltaic bracket system. The second is to protect the internal components of the system from corrosion. The third is to resist the erosion of the photovoltaic bracket system by strong winds and humid environments. The end cover material is generally plastic or aluminum alloy, which has sufficient strength and corrosion resistance.

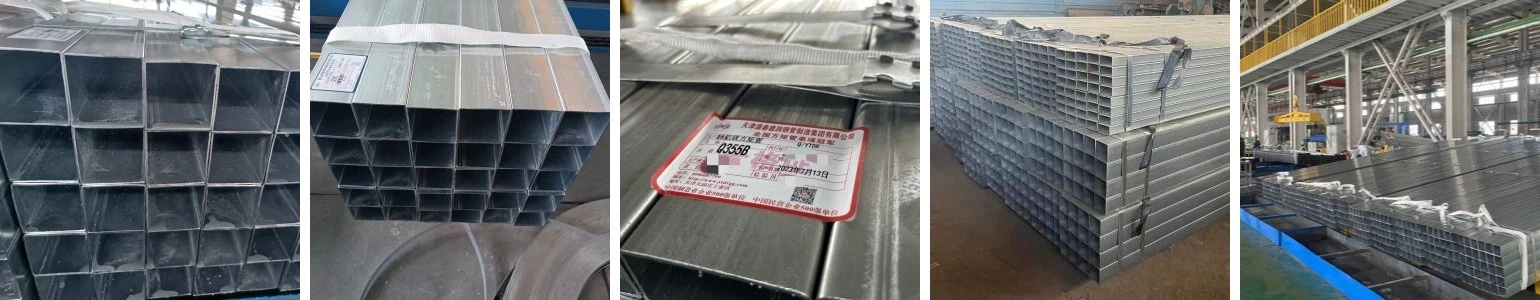

Our factory：

Hot Tags: solar pv mounting brackets, China, suppliers, manufacturers, factory, customized, wholesale, bulk
